Specifications – DSB Series
Code: DSB
Standard Cabinet Dimensions: Base cabinets 34-1/2” H × 24” D; wall cabinets 12” D
Construction: 3/4” plywood cabinet box with soild wood doors
Finish: Blue, UV-painted finish

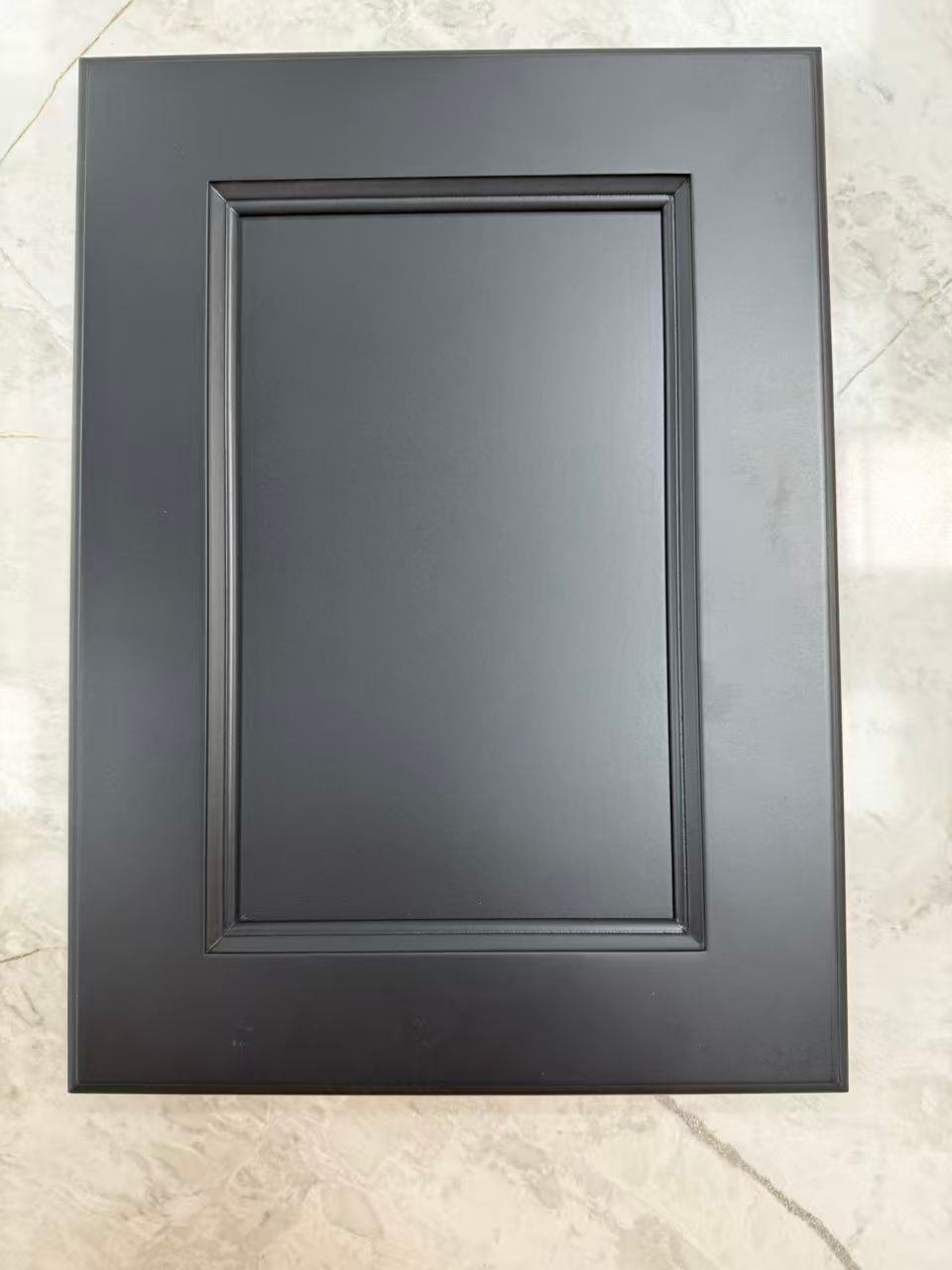

Door Style: Double Shaker
Door & Drawer Fronts: Full overlay, 3/4” thick soild wood (birch) frame with MDF centre piece
Cabinet Construction: European-style frameless design
Cabinet Box: 3/4” thick, 13-ply plywood with white painted finish; assembled using cam-lock system
Drawers: 5-piece dovetail drawers with 5/8” solid wood (birch veneer) sides & back, 3/8” plywood bottom
Shelving: 3/4” plywood shelves with white painted finish, supported by metal shelf pins
Cabinet Sides: Finished end panels available for exposed sides
Wall Cabinets: Available in 30”, 36”, and 42” heights; finished bottoms; end panels available as required
Hardware: DTC concealed 6-way adjustable soft-closing hinges; DTC under-mount full extension soft-closing drawer slides with 6-way adjustable clips
Vanities: Matching bathroom vanities available in multiple sizes
Note: Product images are for reference only. Actual colors may vary slightly due to lighting, photography, and display settings.
